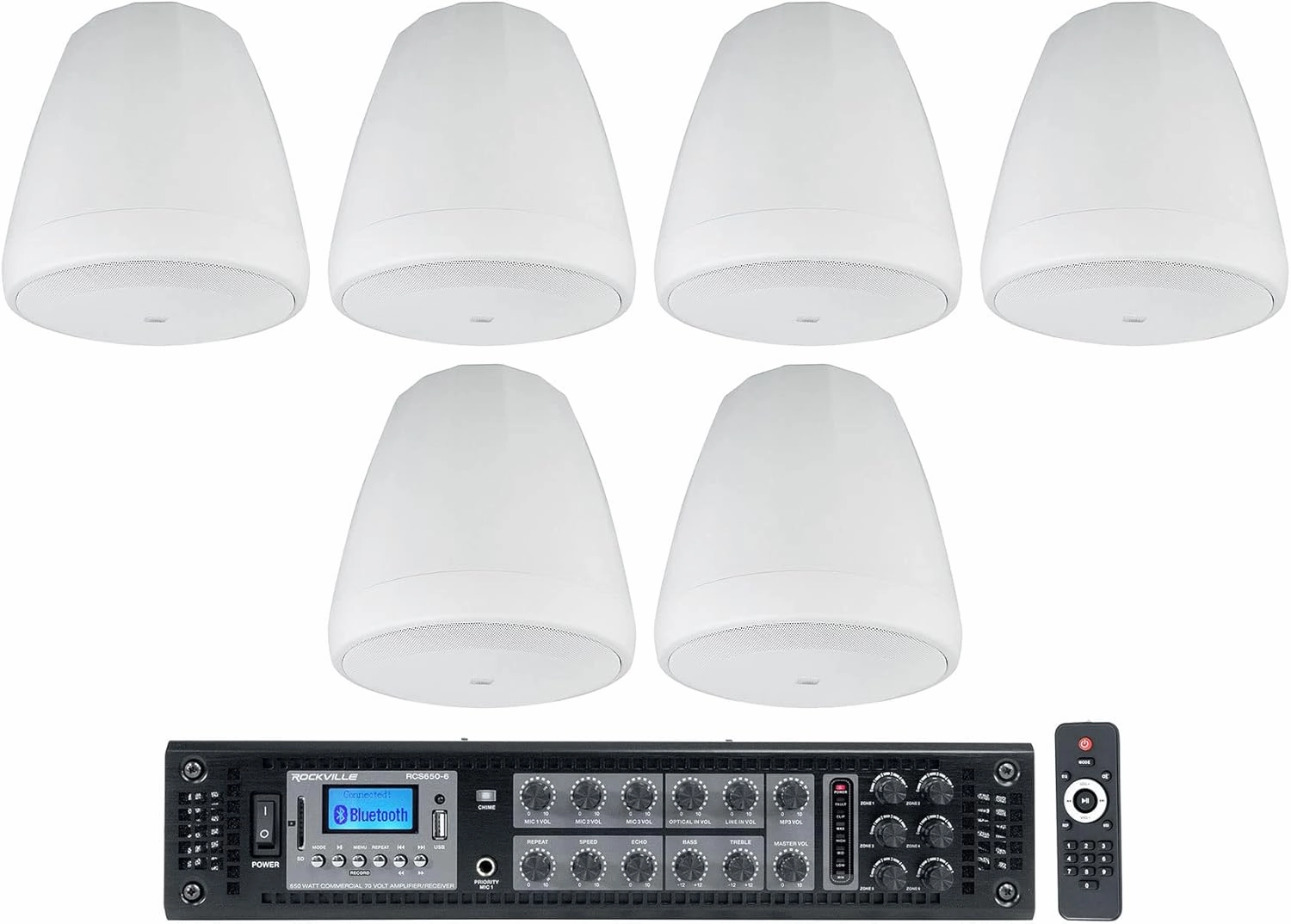

- Package Includes: (1) Rockville RCS650-6 650 Watt 6 Zone 70v Commercial/Restaurant Amplifier/Bluetooth. (3) (2) JBL Control 67 P/T 6.5" 60w Commercial 70v White Pendant Speakers C67P/T-WH
- What's in the Box of RCS650-6: Amplifier. Remote. Rack mount ears. Power Cable. FM Radio antenna. Set-up and how-to training video so you can install it yourself. Warranty. Applications: Restaurant. Bar. Café. School. Lounge. Home (Multi-zone, Multi-room). Office. Warehouse. Features: Rockville RCS650-6 650 Watt commercial/restaurant amplifier 19" rack mountable (removable rack brackets) digital hybrid amplifier/receiver.
- Capable of 70 volt, 100 volt, 8 ohm, and 4 ohm. 70V RMS Power: 650 Watts. 100 volt RMS Power: 780 Watts. 6-Zones - each zone has a separate volume control and you can easily add wall volume controllers as well. Each zone can output 200 watts at 70 volts and the entire amp can output 650 watts total RMS. You can use the direct output and get 650 watts to a single zone or you can use the zone outputs and get up to 200 watts per zone with all zones combined not exceeding 650 watts.
- Features of Control 67 P/T: JBL Control 67 P/T 6.5" 60w Commercial 70v White Pendant Speakers C67P/T-WH. RBI Radiation Boundary Integrator Technology. 120° conical coverage. 6.5" (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality. 75 Watts, 8 ohms and 60W multi-tap transformer. Black or white. Specifications:. . Frequency Range (-10dB): 58 Hz - 18 kHz. Frequency Range (±3 dB): 78 Hz - 16 kHz.
- Power Rating: 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power. Nominal Sensitivity: 90 dB. Coverage Angle: 120° ( 20°/-15°). Directivity Factor (Q): 5.7. Directivity Index (DI): 7.5 dB. Maximum SPL (1m): 109 dB continuous pink noise, 115 dB peak. Impedance: 8 ohms. Transformer Taps: 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W.
Description of RCS650-6: Rockville is proud to introduce our new RCS series of products. The RCS650-6 is a 650 Watt 6-zone rack mountable digital hybrid amplifier/receiver. This amplifier is capable of 70 volt, 100 volt, 8-ohm, and 4-ohm applications. This makes it perfect for use in a Restaurant/Bar/Café/Lounge/School/Conference room or any other setting where many speakers are needed.. . This RCS650-6 outputs 650 watts at 70 volt or 780 Watts at 100 volt and the power can be split up into 6 zones. (Most professionals recommend you not exceed 90% of the amp power, so we recommend your speakers watts not to be more than 600 in total on the taps). Each zone can output up to 200 watts and all zones should not exceed 650 watts. If you want all 650 watts into a single zone you can use the direct outputs. If you want to use multiple zones then you can use the zone outputs. For example you can have zone 1 with 200 watts, zone 2 with 200 watts, zone 3 with 100 watts, zone 4 with 50 watts, zone 6 with 50 watts. This would total 600 watts which is less than the 650 watts the amp can produce and its also not more than the 200 watts output each zone can produce.
